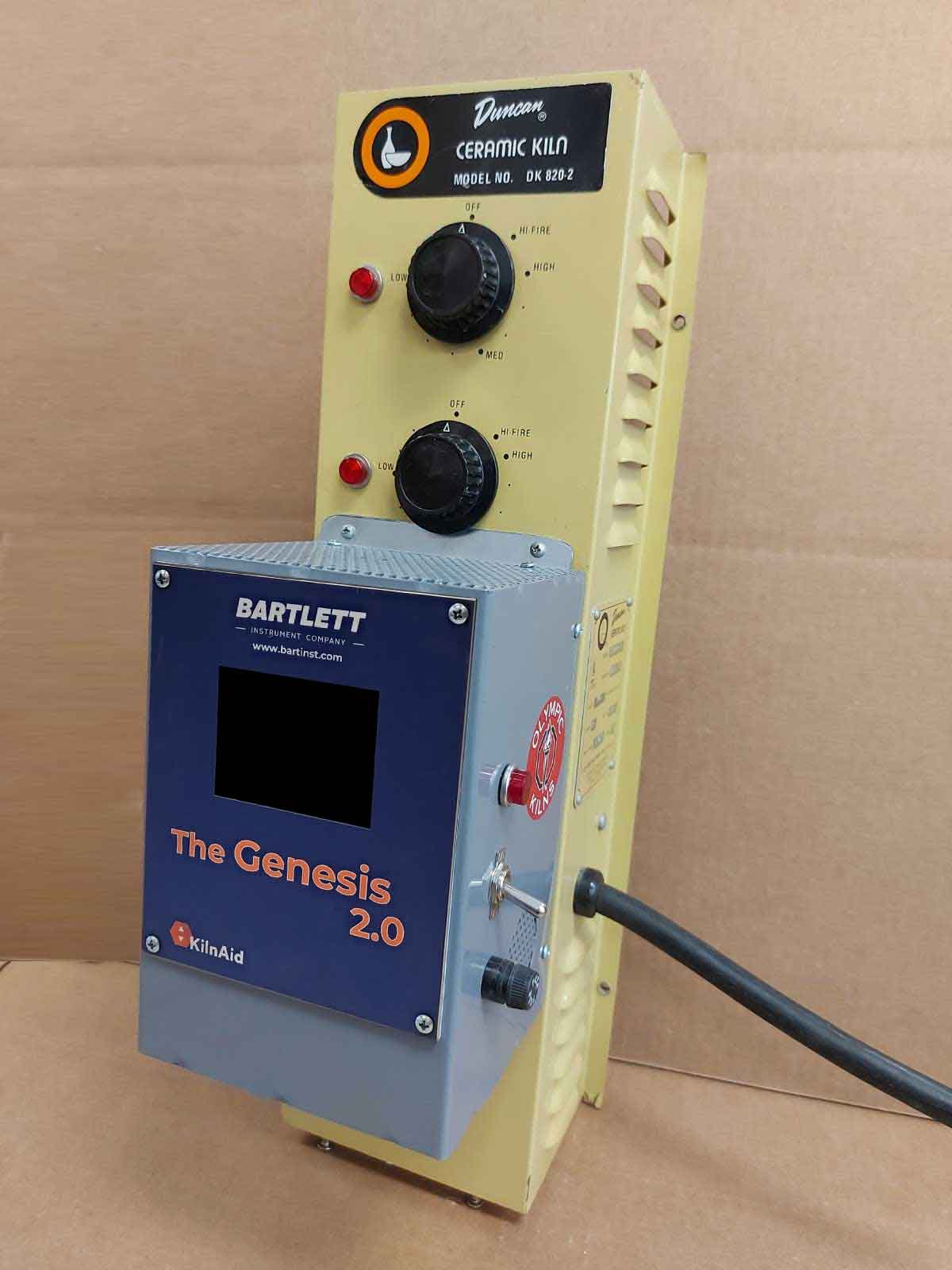

Electro Sitter - Bartlett Genesis 2.0 Retrofit Kiln Control
The Electro Sitter will replace your obsolete Dawson Kiln Sitter! The Electro Sitter comes complete with Bartlett Genesis 2.0 Touchscreen electronic control for cone-fire and/or ramp/hold programming, an attached Type K thermocouple, ceramic fiber, and electronic controller manual.
Installation is easy. The Electro Sitter will fit where the kiln sitter/timer is attached to the kiln. Simply remove the screws from the kiln sitter on the front of the kiln, then detach the power wires connecting to the kiln sitter. The power wires will be attached to the back of the Electro Sitter exactly as they were attached to the kiln sitter terminal block. The thermocouple from the Electro Sitter goes through the kiln sitter tube hole and is exposed 1" inside the kiln. Use the supplied ceramic fiber to fill the space in kiln sitter tube hole after the thermocouple is inserted. After the Electro Sitter is installed, read the controller manual that came with it. When you are ready to program the controller, turn kiln switches to high. Your now have an electronically controlled kiln!
Electro Sitters may be used in any brand kiln that has a Dawson Kiln Sitter and is rated for use up to 50 amps.
