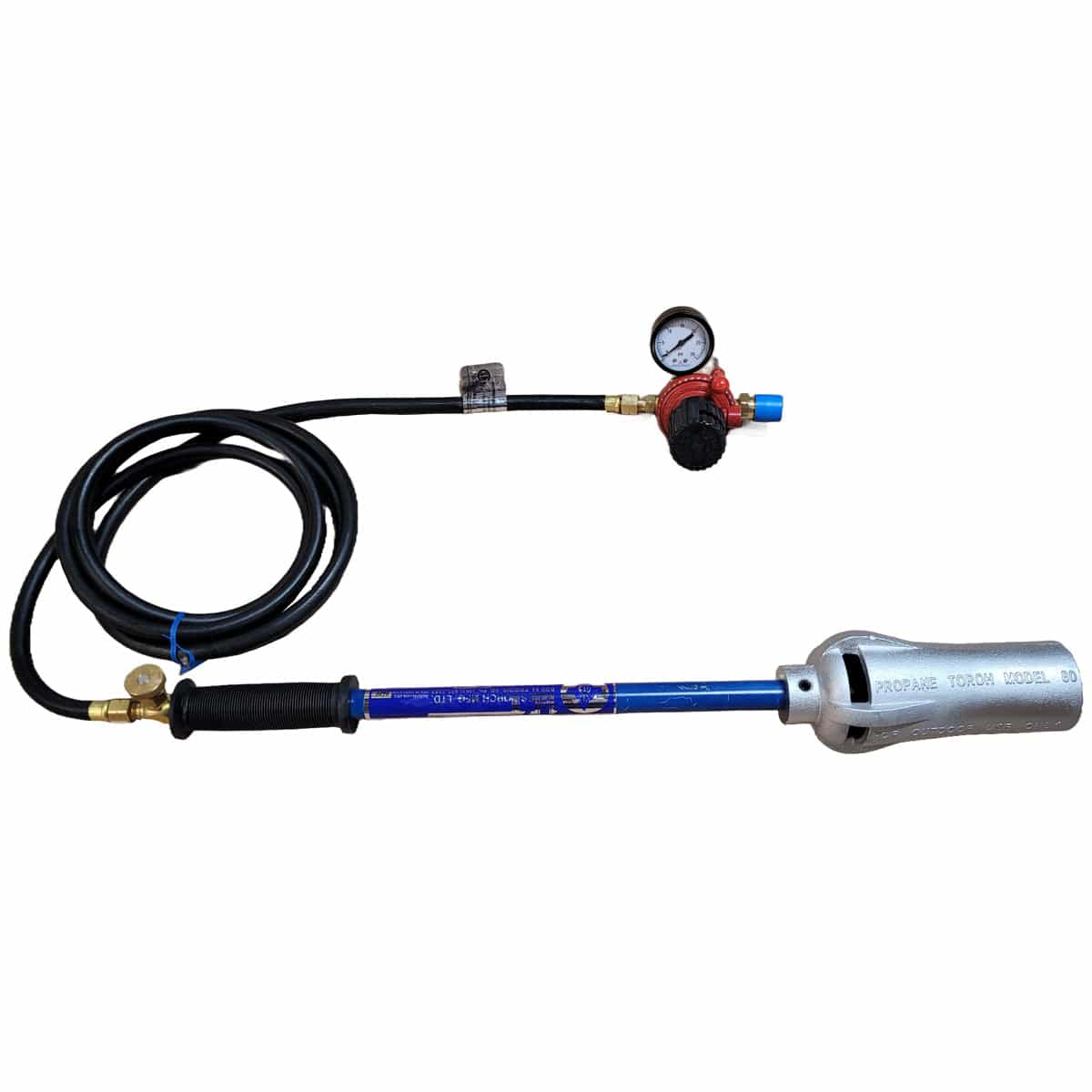

Raku Propane Torch Westorch Manufacturing Model 80 with Regulator

Regular Price
$179.95
Sale Price
$179.95
Regular Price
Sold Out
Unit Price
Translation missing: en.general.accessibility.unit_price_separator
Shipping calculated at checkout.
9 in stock

♦ Ask us a question ♦

Designed for the economical application of intense heat. Canadian made and constructed the highest quality materials, the head is made of cast iron with brass orifice for many years of service. Needle valve control allows adjustment of the the flame as needed.

Features a comfortable rubber hand grip.
10 feet of flexible rubber hose.

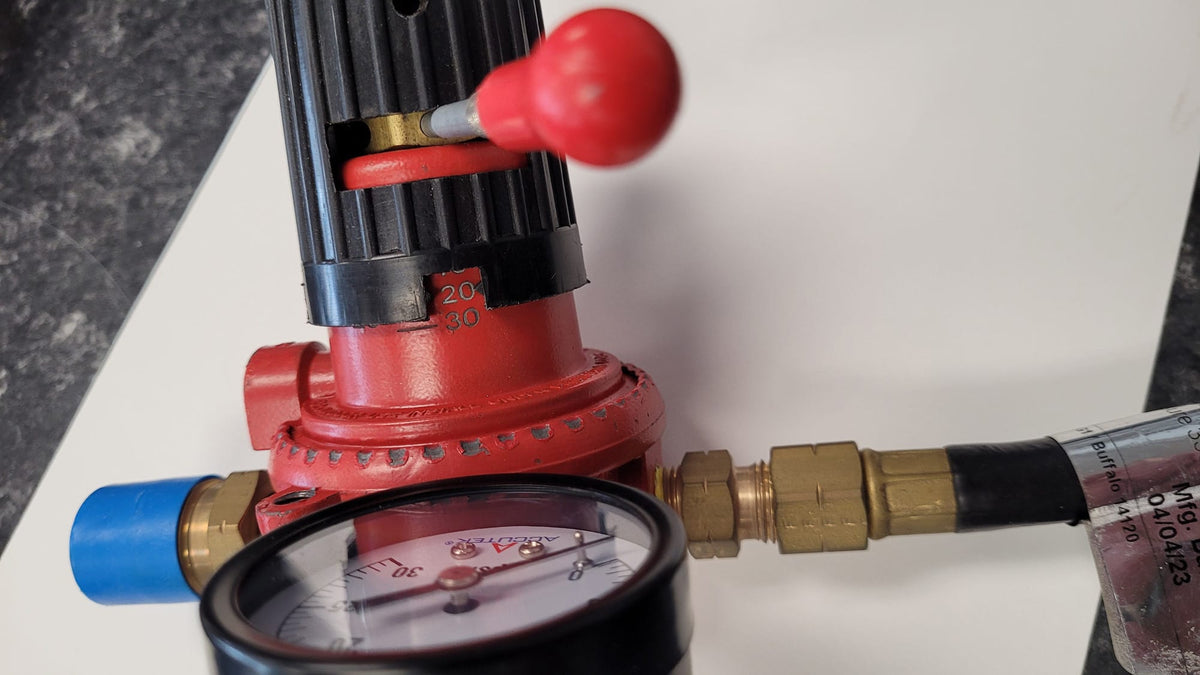

Propane Regulator, adjustable from 0 to 30 PSI. Fitted with POL adapter to easily connect to a bbq tank.
Rated at 220,000 BTU @ 30 psi.
CSA Certified.
26 inches long.

OPERATING INSTRUCTONS AND SAFETY PROCEDURES FOR MODEL 80 TORCH

CERTIFICATIONS

  • CSA Approved- Master Contract #189624
  • BTU rating 220,000
  • 0-30 PSI operating pressure

ASSEMBLY INSTRUCTIONS TO PROPANE SOURCE

  • The torch is equipped with a #53 orifice to operate using propane vapor fuel only.
  • The torch is not to be used on liquid feed propane source.
  • Proper assembly of the torch to the propane tank or source requires connecting the POL tank fitting to a hose (0-30 PSI regulator is optional). Connect the feed hose from the tank to the torch valve. Hose and fitting that are CSA approved or equivalent with maximum pressure rating of 350 PSI should be used.
  • Once assembled to tank, open tank valve and test assembly for leaks using a water spray.

OPERATION AND SAFETY PROCEDURES

  • Ensure torch valve is closed and open valve on propane tank.
  • Holding igniter in front of torch head, open torch valve until ignited.
  • Open torch valve to desired heat source and adjust the regulator until torch burns with a clean blue-red flame.
  • To shut down, close torch valve until flame is extinguished. When not in use, close propane tank valve.
  • Torch should be held by handle grip only.
  • Keep torch head away from hands or any flammable materials, as it is extremely hot during operation and for a period after shutdown. Do not lay torch on ice or snow when hot, as it may cause cracking of the head.
  • For outdoor use only.
  • Do not leave unattended.
